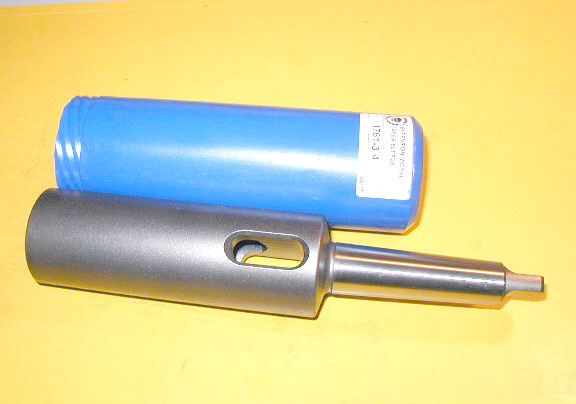

NEU Verlängerungen DIN 2187 NEU
TYP 1761 gehärtet und an Kegel geschliffen
Made in EUROPE
Preisangaben nicht bindend Stand 01.01.2012
|
Bestellnummer |
Mk- Außen |
Mk- Innen |
DØmm |
L |
A |
Gewicht- g |
Bestand Soll |
Netto € |
Preis inkl. 19% MwSt. |
|
MZWAVH1761-11 |
Mk1 |
Mk1 |
Ø20 |
145mm |
83mm |
190g |
1 |
16,27 |
19,36 |
|
MZWAVH1761-12 |
Mk1 |
Mk2 |
Ø30 |
160mm |
98mm |
340g |
4 |
16,27 |
19,36 |
|
MZWAVH1761-13 |
Mk1 |
Mk3 |
Ø36 |
183mm |
121mm |
400g |
2 |
19,14 |
22,78 |
|
|
|
|
|
|
|
|
|
|
0 |
|
MZWAVH1761-21 |
Mk2 |
Mk1 |
Ø20 |
160mm |
85mm |
250g |
1 |
13,4 |
15,95 |
|
MZWAVH1761-22 |
Mk2 |
Mk2 |
Ø30 |
175mm |
100mm |
400g |
3 |
16,27 |
19,36 |
|
MZWAVH1761-23 |
Mk2 |
Mk3 |
Ø36 |
196mm |
121mm |
840g |
4 |
19,14 |
22,78 |
|
MZWAVH1761-24 |
Mk2 |
Mk4 |
Ø48 |
221mm |
146mm |
930g |
2 |
30,62 |
36,44 |
|
|
|
|
|
|
|
|
|
|
0 |
|
MZWAVH1761-31 |
Mk3 |
Mk1 |
Ø20 |
175mm |
81mm |
400g |
0 |
16,27 |
19,36 |
|
MZWAVH1761-32 |
Mk3 |
Mk2 |
Ø30 |
194mm |
100mm |
550g |
1 |
17,23 |
20,5 |
|
MZWAVH1761-33 |
Mk3 |
Mk3 |
Ø36 |
215mm |
121mm |
860g |
0 |
22,97 |
27,33 |
|
MZWAVH1761-34 |
Mk3 |
Mk4 |
Ø36 |
240mm |
146mm |
1550g |
3 |
35,41 |
42,14 |
|
MZWAVH1761-35 |
Mk3 |
Mk5 |
Ø36 |
275mm |
181mm |
2500g |
2 |
49,77 |
59,23 |
|
|
|
|
|
|
|
|
|
|
0 |
|
MZWAVH1761-41 |
Mk4 |
Mk1 |
Ø20 |
200mm |
83mm |
800g |
0 |
23,93 |
28,48 |
|
MZWAVH1761-42 |
Mk4 |
Mk2 |
Ø30 |
215mm |
98mm |
850g |
0 |
23,93 |
28,48 |
|
MZWAVH1761-43 |
Mk4 |
Mk3 |
Ø36 |
240mm |
123mm |
1300g |
1 |
23,93 |
28,48 |
|
MZWAVH1761-44 |
Mk4 |
Mk4 |
Ø48 |
265mm |
148mm |
1900g |
1 |
38,28 |
45,55 |
|
Bestellnummer |
Mk- Außen |
Mk- Innen |
DØmm |
L |
A |
Gewicht- g |
Bestand Soll |
Netto € |
Preis inkl. 19% MwSt. |
|
MZWAVH1761-45 |
Mk4 |
Mk5 |
Ø63 |
300mm |
183mm |
3310g |
1 |
60,29 |
71,75 |
|
MZWAVH1761-46 |
Mk4 |
Mk6 |
Ø82 |
361mm |
244mm |
5360g |
1 |
99,53 |
118,44 |
|
|
|
|
|
|
|
|
|
|
0 |
|
MZWAVH1761-51 |
Mk5 |
Mk1 |
Ø20 |
232mm |
83mm |
1800g |
0 |
40,2 |
47,84 |
|
MZWAVH1761-52 |
Mk5 |
Mk2 |
Ø30 |
247mm |
98mm |
1900g |
0 |
40,2 |
47,84 |
|
MZWAVH1761-53 |
Mk5 |
Mk3 |
Ø36 |
268mm |
119mm |
2150g |
1 |
40,2 |
47,84 |
|
MZWAVH1761-54 |
Mk5 |
Mk4 |
Ø48 |
300mm |
150mm |
2750g |
0 |
40,2 |
47,84 |
|
MZWAVH1761-55 |
Mk5 |
Mk5 |
Ø63 |
335mm |
186mm |
4200g |
1 |
65,08 |
77,45 |
|
MZWAVH1761-56 |
Mk5 |
Mk6 |
Ø82 |
396mm |
247mm |
6200g |
0 |
109 |
129,71 |
|
|
|
|
|
|
|
|
|
|
0 |
|
MZWAVH1761-61 |
Mk6 |
Mk1 |
Ø20 |
294mm |
84mm |
4100g |
0 |
66 |
78,54 |
|
MZWAVH1761-62 |
Mk6 |
Mk2 |
Ø30 |
309mm |
99mm |
4350g |
0 |
66 |
78,54 |
|
MZWAVH1761-63 |
Mk6 |
Mk3 |
Ø36 |
350mm |
120mm |
4580g |
0 |
66 |
78,54 |
|
MZWAVH1761-64 |
Mk6 |
Mk4 |
Ø48 |
355mm |
145mm |
5420g |
0 |
73 |
86,87 |
|
MZWAVH1761-65 |
Mk6 |
Mk5 |
Ø63 |
390mm |
180mm |
6750g |
0 |
86 |
102,34 |
|
MZWAVH1761-66 |
Mk6 |
Mk6 |
Ø82 |
480mm |
241mm |
9270g |
0 |
150 |
178,5 |
Typ 1761 kann auch in weicher Ausführung geliefert werden ! Bitte als Typ 1762 anfragen !
Verlängerungen DIN 2187
Mk = Mk und Reduzierung Div. Herkunft
Die Verlängerungen sind gehärtet und geschliffen
Made in ?
X Stückzahl in Lagerhaltung Stückzahlen 0 werden mit einer Lieferzeit von ca. 10 Tegen verkauft.
Alle Preisangaben freibleibend Stand 01.01.2012
|
Bestellnummer |
Mk- Außen |
Mk- Innen |
DØmm |
L1 |
L2 |
Gewicht- g |
Bestand Soll |
Preis Netto in EUR |
Preis inkl. 19% MwSt. |
|
MZWAVHM1/1 |
Mk1 |
Mk1 |
Ø20 |
83mm |
145mm |
180g |
2 |
7,38 |
8,78 |
|
MZWAVHM2/1 |
Mk2 |
Mk1 |
Ø20 |
85mm |
160mm |
250g |
0 |
8,54 |
10,16 |
|
MZWAVHM2/2 |
Mk2 |
Mk2 |
Ø30 |
100mm |
175mm |
400g |
2 |
8,54 |
10,16 |
|
MZWAVHM3/1 |
Mk3 |
Mk1 |
Ø20 |
83mm |
175mm |
400g |
0 |
12,94 |
15,4 |
|
MZWAVHM3/2 |
Mk3 |
Mk2 |
Ø30 |
100mm |
194mm |
500g |
0 |
12,94 |
15,4 |
|
MZWAVHM3/3 |
Mk3 |
Mk3 |
Ø36 |
121mm |
215mm |
840g |
2 |
12,94 |
15,4 |
|
MZWAVHM4/1 |
Mk4 |
Mk1 |
Ø20 |
83mm |
200mm |
800g |
0 |
14,2 |
16,9 |
|
MZWAVHM4/2 |
Mk4 |
Mk2 |
Ø30 |
98mm |
215mm |
850g |
0 |
14,2 |
16,9 |
|
MZWAVHM4/3 |
Mk4 |
Mk3 |
Ø36 |
123mm |
240mm |
1300g |
0 |
18,3 |
21,78 |
|
MZWAVHM4/4 |
Mk4 |
Mk4 |
Ø48 |
148mm |
265mm |
1900g |
0 |
19,9 |
23,68 |
|
MZWAVHM5/1 |
Mk5 |
Mk1 |
Ø20 |
83mm |
232mm |
1800g |
0 |
25,5 |
30,35 |
|
MZWAVHM5/2 |
Mk5 |
Mk2 |
Ø30 |
98mm |
247mm |
1900g |
0 |
24,1 |
28,68 |
|
MZWAVHM5/3 |
Mk5 |
Mk3 |
Ø36 |
119mm |
268mm |
2150g |
0 |
24,1 |
28,68 |
|
MZWAVHM5/4 |
Mk5 |
Mk4 |
Ø48 |
150mm |
300mm |
2750g |
0 |
38,2 |
45,46 |
|
MZWAVHM5/5 |
Mk5 |
Mk5 |
Ø63 |
186mm |
335mm |
4200g |
0 |
38,72 |
46,08 |
|
MZWAVHM6/4 |
Mk6 |
Mk4 |
Ø48 |
150mm |
355mm |
5420g |
0 |
68 |
80,92 |
|
MZWAVHM6/5 |
Mk6 |
Mk5 |
Ø63 |
180mm |
390mm |
6750g |
0 |
68 |
80,92 |
|
MZWAVHM6/6 |
Mk6 |
Mk6 |
Ø82 |
241mm |
480mm |
9270g |
0 |
140 |
166,6 |
Spindelerweiterung Div. Herkunft
Stand 01.01.2012
|
Bestellnummer |
Mk- Außen |
Mk- Innen |
DØmm |
L1 |
L2 |
Gewicht- g |
Bestand Soll |
Preis Netto in EUR |
Preis inkl. 19% MwSt. € |
|
MZWAVHM1/2 |
Mk1 |
Mk2 |
Ø30 |
98mm |
160mm |
420g |
1 |
8,54 |
10,16 |
|
MZWAVHM2/3 |
Mk2 |
Mk3 |
Ø32-33 |
121mm |
196mm |
550g |
3 |
12,32 |
14,66 |
|
MZWAVHM2/4 |
Mk2 |
Mk4 |
Ø48 |
94mm |
168mm |
1300g |
0 |
16,11 |
19,17 |
|
MZWAVHM3/4 |
Mk3 |
Mk4 |
Ø48 |
146mm |
240mm |
1500g |
2 |
16,11 |
19,17 |
|
MZWAVHM4/5 |
Mk4 |
Mk5 |
Ø63 |
182mm |
300mm |
3310g |
1 |
36,18 |
43,05 |
|
MZWAVHM5/6 |
Mk5 |
Mk6 |
Ø82 |
247mm |
396mm |
6400g |
0 |
38,72 |
46,08 |
Alle Preisangaben freibleibend . Bestand 0 ca. 10 Tage Lieferzeit!
Lange Verlaengerungen Preise bitte anfragen
|
Bestellnummer |
Mk- Außen |
Mk- Innen |
DØmm |
L1 |
L2 |
Gewicht- g |
Bestand Soll |
Preis Netto in EUR |
Preis inkl. 19% MwSt. |
|
MZWAVHM1/1200 |
Mk1 |
Mk1 |
Ø20 |
138mm |
200mm |
250g |
0 |
anfragen |
anfragen |
|
MZWAVHM1/1250 |
Mk1 |
Mk1 |
Ø20 |
188mm |
250mm |
375g |
0 |
anfragen |
anfragen |
|
MZWAVHM1/1300 |
Mk1 |
Mk1 |
Ø20 |
238mm |
300mm |
500g |
0 |
anfragen |
anfragen |
|
MZWAVHM1/1350 |
Mk1 |
Mk1 |
Ø20 |
338mm |
350mm |
625g |
0 |
anfragen |
anfragen |
|
MZWAVHM1/1400 |
Mk1 |
Mk1 |
Ø20 |
388mm |
400mm |
750g |
0 |
anfragen |
anfragen |
|
MZWAVHM1/1500 |
Mk1 |
Mk1 |
Ø20 |
438mm |
500mm |
1000g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2200 |
Mk2 |
Mk2 |
Ø25 |
125mm |
200mm |
4300g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2250 |
Mk2 |
Mk2 |
Ø25 |
175mm |
250mm |
625g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2300 |
Mk2 |
Mk2 |
Ø25 |
225mm |
300mm |
820g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2350 |
Mk2 |
Mk2 |
Ø25 |
275mm |
350mm |
1015g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2400 |
Mk2 |
Mk2 |
Ø25 |
325mm |
400mm |
1200g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2450 |
Mk2 |
Mk2 |
Ø25 |
375mm |
450mm |
1400g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2500 |
Mk2 |
Mk2 |
Ø25 |
438mm |
500mm |
1600g |
0 |
anfragen |
anfragen |
|
MZWAVHM2/2600 |
Mk2 |
Mk2 |
Ø25 |
525mm |
600mm |
1800g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3250 |
Mk3 |
Mk3 |
Ø32 |
156mm |
250mm |
1000g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3300 |
Mk3 |
Mk3 |
Ø32 |
206mm |
300mm |
1300g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3350 |
Mk3 |
Mk3 |
Ø32 |
256mm |
350mm |
1550g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3400 |
Mk3 |
Mk3 |
Ø32 |
306mm |
400mm |
1850g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3450 |
Mk3 |
Mk3 |
Ø32 |
356mm |
450mm |
2100g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3500 |
Mk3 |
Mk3 |
Ø32 |
406mm |
500mm |
2400g |
0 |
anfragen |
anfragen |
|
MZWAVHM3/3600 |
Mk3 |
Mk3 |
Ø32 |
456mm |
600mm |
2700g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4300 |
Mk4 |
Mk4 |
Ø40 |
183mm |
300mm |
1650g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4350 |
Mk4 |
Mk4 |
Ø40 |
233mm |
350mm |
2150g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4400 |
Mk4 |
Mk4 |
Ø40 |
283mm |
400mm |
2650g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4450 |
Mk4 |
Mk4 |
Ø40 |
333mm |
450mm |
3100g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4500 |
Mk4 |
Mk4 |
Ø40 |
383mm |
500mm |
3600g |
0 |
anfragen |
anfragen |
|
MZWAVHM4/4600 |
Mk4 |
Mk4 |
Ø40 |
483mm |
600mm |
4200g |
0 |
anfragen |
anfragen |
